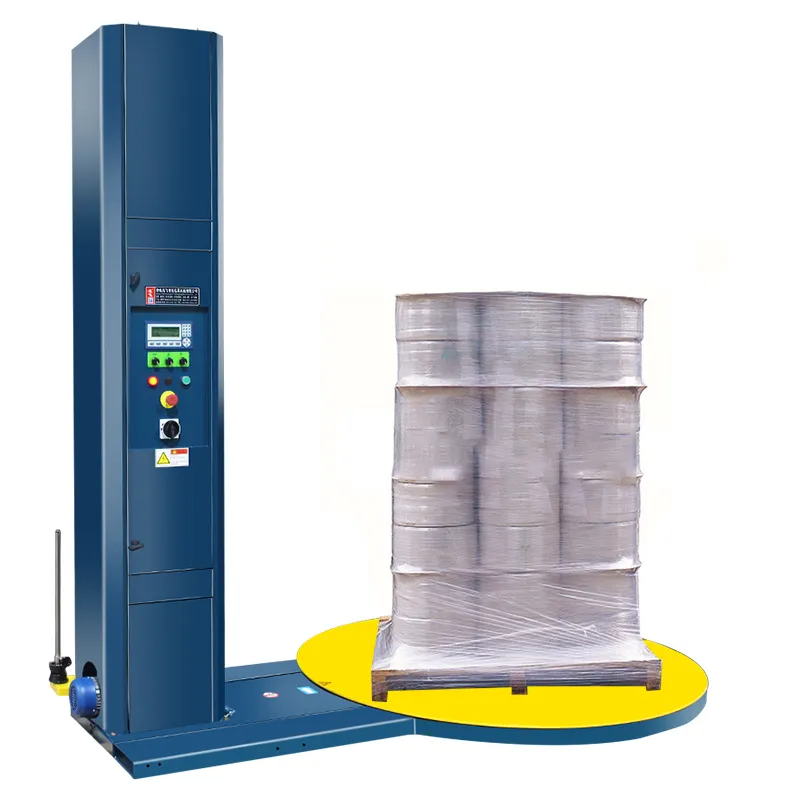

Home » Portfolio » Electric Pallet Stretch Wrapping Machines Manufacturer Automatic Pallet Stretch Film Wrapping Machine
Product Parameter
Model
YS-1800A (Resistance Tensile Type)
Voltage
1P, AC220V/110V, 50Hz/60Hz
Power
1KW
Turntable rotation speed
0-10r/min
Film tightness
The tightness of the film can be controlled by handle adjustment
Turntable diameter
1500mm/1650mm/1800mm/2000mm(Customizable)
Wrapping Height
500-2000mm
Column height
2400mm(Customizable)
Max loading
1500kg / 2000kg
Machine weight
650-750kg
Optional
Ramp equipment
Dimension
2600*1500*2550mm
Film size
Height: 100-500mm, Thickness: 17-25um
Model
YS-1800A(Pre-stretched Type)
Voltage
1P, AC220V/110V, 50Hz/60Hz
Power
1.25KW
Turntable rotation speed
0-10r/min
Film tightness
The tightness of the film can be controlled by frequency conversion
Turntable diameter
1500mm/1650mm/1800mm/2000mm(Customizable)
Wrapping Height
500-2000mm
Column height
2400mm(Customizable)
Max loading
1500kg / 2000kg
Machine weight
650-750kg
Optional
Ramp equipment
Dimension
2600*1500*2550mm
Film size
Height: 100-500mm, Thickness: 17-25um
Matching Ramp Parameters(mm)
Turntable Diameter
Ramp Radius
Ramp Width
Ramp Length
Height
1500
760
1060
1500
75
1650
835
1060
1500
75
1800
910
1260
1500
75
2000
1010
1260
1500
75
Product details
PLC control panel
The advanced PLC programmable controller is connected with the touch screen, the operation of the equipment is clear at a glance, and the winding layers and times are adjustable

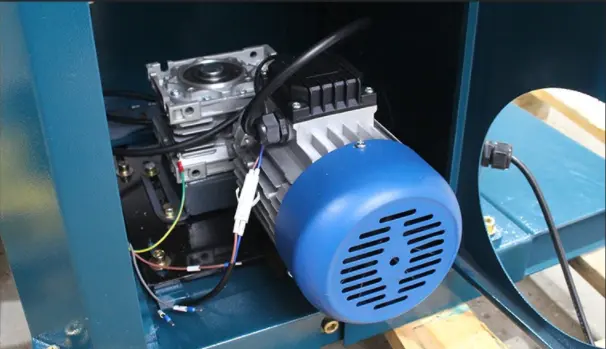

Electrical configuration
It adopts well-known brand components, Siemens frequency converter, stable performance, quality assurance, export quality and CE certification
High quality lift
High quality metal lift design makes the machine work more stable
Load bearing turntable
The turntable starts and stops slowly to prevent the package from falling
